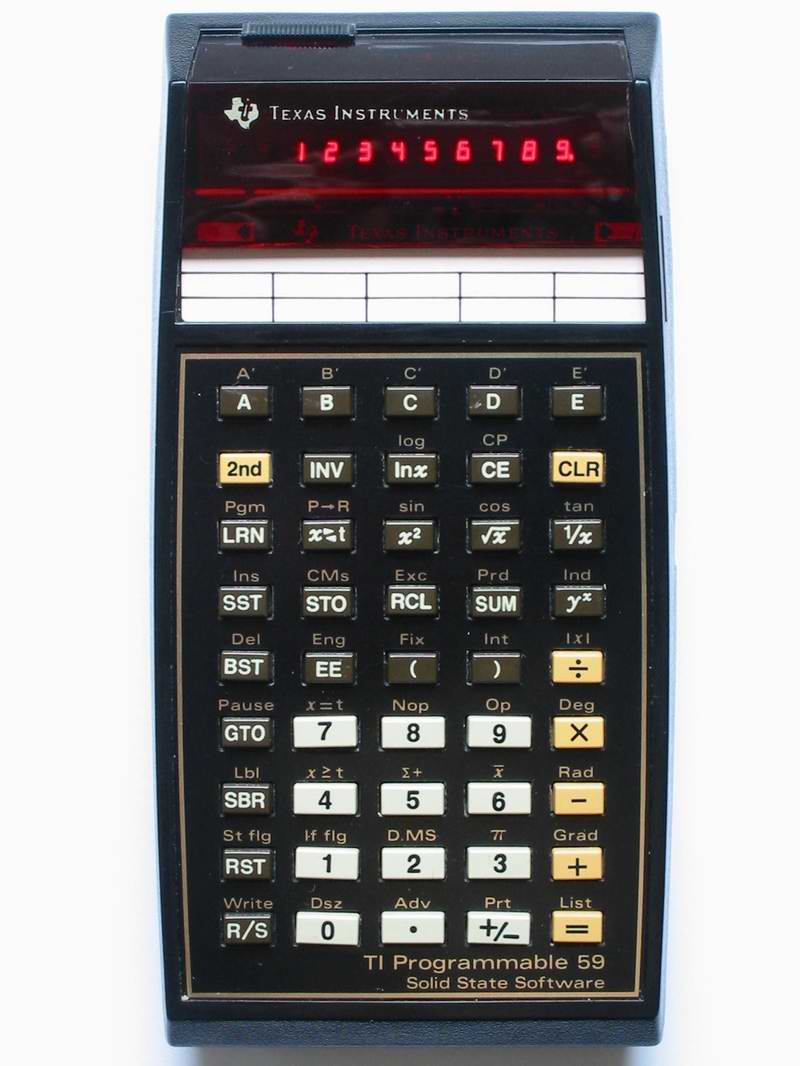

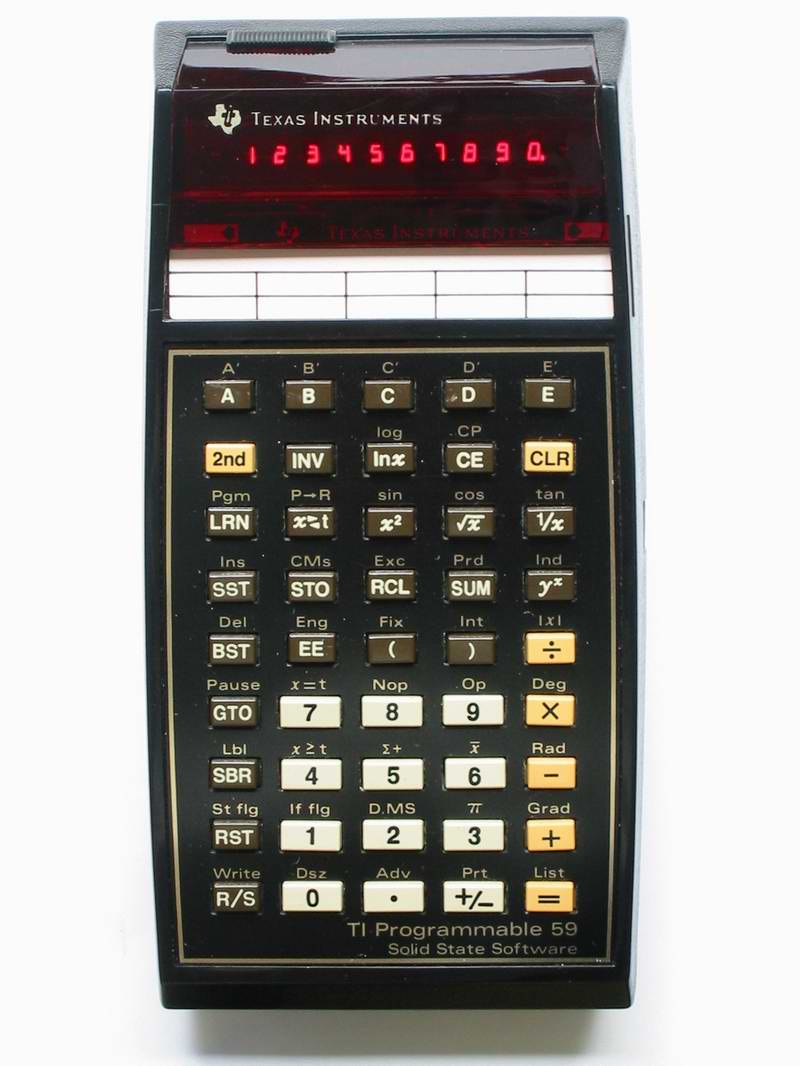

Texas Instruments TI-59


Serial Number (1) 2381110, 1480ACH: 14th week 1980, Holland, Almelo
Accessories Protective plastic box

Master Library Module 1, 1977. Includes 25 non-magnetic cards with labels for the "Master Library Module 1"

Power supply

Handbuch: Programmierbare TI-58/59 Individuelles Programmieren, 1977 (German). Bound copy, average quality. Includes a description of the "Master Library Module 1"

1 empty magnetic card
Condition Mint!!
Acquired 7.9.2002
Serial Number (2) 6795620, ATA5082: 50th week 1982, USA, Abilene Texas
Accessories Protective plastic box

Master Library Module 1, 1977. Includes 25 non-magnetic cards with labels for the "Master Library Module 1", a keyboard overlay, 14 magnetic cards, and a drive roller cleaning card in a protective plastic sleeve

Programmierbare TI-58/58C/59 Standard Software Modul reference, 1977/1979, (German)

40 additional magnetic cards plus a drive roller cleaning card in another protective plastic sleeve

Approx. 30 additional magnetic cards

3 sealed cleaning card including instructions

Power supply

Original cardboard box

Programmierbare TI-58/58C/59 Kurzanleitung, 1977/1979, (German)

Various personal listings and notes. Among them a note from a magazine dates 1/86 which states the total price of entire package (calculator + printer) at about DM 470 (approx. $235)

15 blank programming sheets

All sorts of program listings from different magazines

Programmierbare TI-58/58C/59 Individualles programmieren, 1977/1979, (German)
Condition Close to mint. On the back there's a note written with a black pen
Acquired 27.9.2002

Book Hans-Joachim Ludwig: Programmieren von Taschenrechnern 5. Programmoptimierung für Taschenrechner (AOS)

Vieweg Press, 1979, German, 102 pages, ISBN 3-528-04159-5

Mainly written for the SR-52, TI-57, TI-58 and TI-59
Condition Good
Acquired 16.11.2003
Book Texas Instruments: TI Programmable 57, Der Weg zum Programmieren

1977, German

This is more of a manual for the TI-57
Condition Good
Acquired 16.11.2003

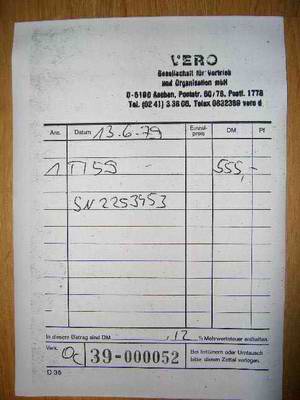

Purchase receipt dated 13.6.1979, 555 DM, approx. 278 Euro.
For more information on the VERO company see here.
.

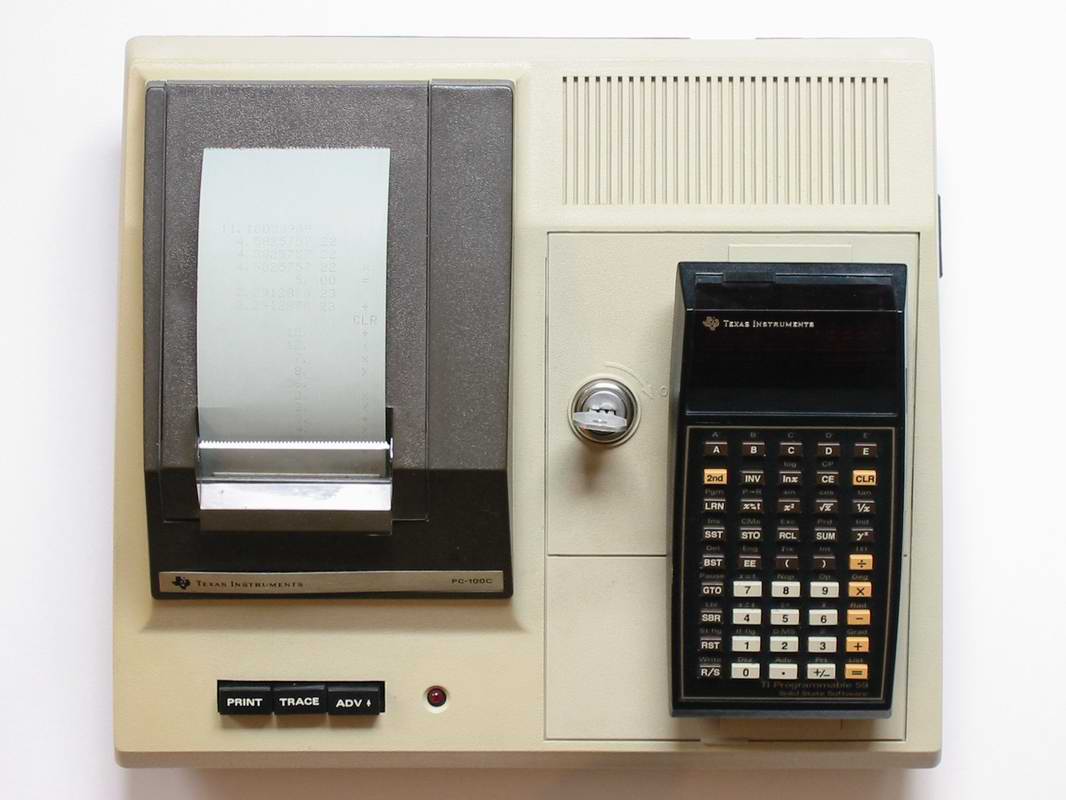

Description Printer PC-100C
Serial Number A51653, USA
Accessories Texas Instruments PC-100C Owner's Manual, 1978 (different languages)

1 installed roll of paper

3 sealed rolls of paper

AC power cable (220V)

Protective plasic cover for the calculator connector

2 keys

Original cardboard box
Condition Excellent! And it even works!!
Acquired 27.9.2002
.
Description Solid State Software Pack
Accessories Set of labelled cards which describe the function keys of the Solid State Software Module

7 magnetic cards

Comes in a protective plastic cover which has a separate compartment for the Solid State Software Module (not included)
Condition Excellent!
Acquired 21.9.2002
.
Type, Precision, Input Mode Scientific, 10 BCD digits, exponent ±99, Algebraic.
Operates with three hidden digits. Nevertheless, the precision is only average.
Programmable Yes,merged keystrokes. It's speed compares the HP-41.
Performance Index 2.5
Memory Default 60 storage registers and 480 program steps. Storage registers can be converted to/from program steps in junks of 10 registers using the "OP 17" command. Ie. "1 OP 17" results in "879.09" indicating 10 storage registers (0-9) and 879 program steps. One storage registers corresponds to 8 program steps (about 1 byte). So in total the available memory is approximately 960 bytes (twice as much as the TI-58C).
No permanent memory.
Display 11 digit 7 segment red LED
Special features Magnetic card reader
Original Pricing, Production In  Germany around 280 Euro, see receipt shown above, 1977-1983
According to A. Maurer from Switzerland a TI-59 plus PC-100C printer was 1000 SFr in 1980 (645 Euro as of 2/2005).
My own notes from October 1977 indicate a price of 900 DM (450 Euro).
Batteries Rechargeable battery pack, 3x AA cells or power supply
Dimensions Length 16.2cm, Width 8.1cm, Height 3.5cm
Links Programming.
Datamath Museum.
Texas Instruments 59.
Vertigo TI-59 Emulator.
Comment Texas Instrument's answer to Hewlett Packard's HP-67. However, the HP-67 is significantly slower than the TI-59 even though the RPN stack is a bit of an advantage for programming (needs less instructions).

Calculation
 Correct result
 TI-59 Result
 Error
100/18
40/9
5.555555*0.5555555
40/9+50/9000
sqrt(2E6)/1000
 exp(0.005)
exp(0.999999)
exp(1.000001)
exp(100)/1E43
 ln(1E-6)/10
 ln(0.9995)*10000
ln(1.0005)*10000
 pow10(0.005)
pow10(0.99999)
pow10(1.00001)/10
pow10(80.1)/1E80
log10(2E-8)
log10(0.9995)*10000
log10(1.0005)*10000
log10(1000100)
2^40 / 1E12
2^1.443
1.000001^1E6
sin(0.01 rad)*1000
sin(1 rad)*10
sin(1.5608 rad)*10
sin(800 rad)*10
tan(0.01 rad)*100
tan(1 rad)
tan(1.5708 rad)/1E5
tan(800 rad)
asin(0.01)*100,rad
asin(0.5)*10,rad
asin(0.999),rad
asin(0.99999),rad
atan(0.01)*1000,rad
atan(0.9999)*10,rad
atan(1.0001)*10,rad
atan(1E4),rad
sin(0.01 deg)*10000
sin(50 deg)*10
sin(89.9 deg)*10
sin(5000 deg)*10
tan(0.01 deg)*10000
tan(50 deg)
tan(89.99 deg)/1000
tan(5000 deg)*10
asin(0.01 deg)*10
asin(0.5 deg)/10
asin(0.999 deg)/10
asin(0.99999 deg)/10
atan(0.01 deg)*10
atan(0.9999 deg)/10
atan(1.0001 deg)/10
atan(1E4 deg)/10 		 +5.555555555 555555556
+4.444444444 444444444
+3.086419135 802500000
+4.450000000 000000000
+1.414213562 373095049
+1.005012520 859401063
+2.718279110 178575917
+2.718284546 742232836
+2.688117141 816135448
-1.381551055 796427410
-5.001250416 822979193
+4.998750416 510479141
+1.011579454 259898524
+9.999769744 141629304
+1.000023026 116026881
+1.258925411 794167210
-7.698970004 336018805
-2.172015458 642557997
+2.170929722 302082819
+6.000043427 276862670
+1.099511627 776000000
+2.718856483 813477575
+2.718280469 319376884
+9.999833334 166664683
+8.414709848 078965067
+9.999500371 413582332
+8.939696481 970214179
+1.000033334 666720637
+1.557407724 654902231
-2.722418084 073540959
-1.994900160 845839293
+1.000016667 416711313
+5.235987755 982988731
+1.526071239 626163188
+1.566324187 113108692
+9.999666686 665238206
+7.853481608 973649763
+7.854481608 975316429
+1.570696326 795229953
+1.745329243 133368033
+7.660444431 189780352
+9.999984769 132876988
-6.427876096 865393263
+1.745329269 716252907
+1.191753592 594209959
+5.729577893 130590236
-8.390996311 772800118
+5.729673448 571526491
+3.000000000 000000000
+8.743744126 687686209
+8.974376527 084057279
+5.729386976 834859268
+4.499713506 778012245
+4.500286464 574097998
+8.999427042 206779036		 +5.555555556
+4.444444444
+3.086419136
+4.450000000
+1.414213562
+1.005012521
+2.718279110
+2.718284547
+2.688117142
-1.381551056
-5.001250416
+4.998750417
+1.011579454
+9.999769744
+1.000023026
+1.258925412
-7.698970004
-2.172015458
+2.170929723
+6.000043427
+1.099511628
+2.718856484
+2.718280469
+9.999833334
+8.414709848
+9.999500371
+8.939696482
+1.000033335
+1.557407725
-2.722418930
-1.994900161
+1.000016667
+5.235987756
+1.526071240
+1.566324187
+9.999666686
+7.853481609
+7.854481609
+1.570696327
+1.745329236
+7.660444431
+9.999984769
-6.427876097
+1.745329263
+1.191753593
+5.729577859
-8.390996313
+5.729673448
+3.000000000
+8.743744127
+8.974376527
+5.729386976
+4.499713507
+4.500286465
+8.999427042
 0
0
0
0
0
0
0
0
0
0
1E-9
0
0
0
0
0
0
1E-9
1E-9
0
0
0
0
0
0
0
0
0
0
846E-9
0
0
0
0
0
1E-9
0
0
0
7E-9
0
0
0
7E-9
0
34E-9
1E-9
1E-9
0
0
0
1E-9
0
0
0
