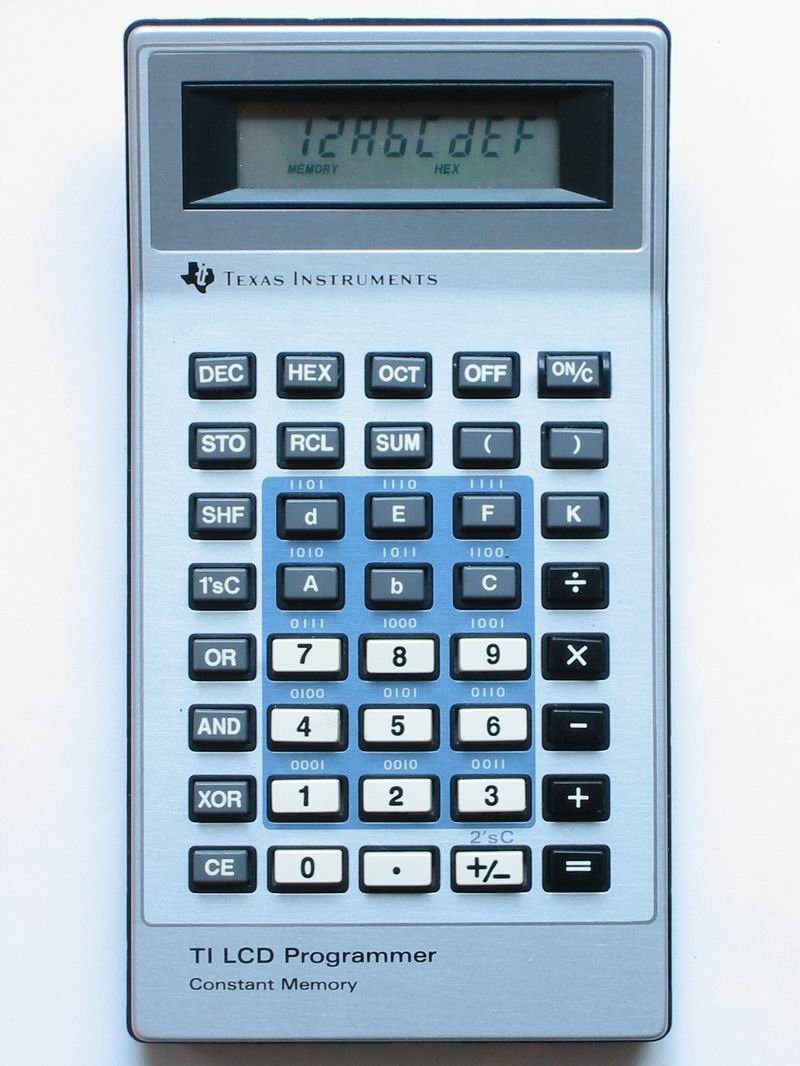

Texas Instruments LCD Programmer

Serial number RCI 1684
Accessories Pouch

Manual (English, German, French, 1982)
Condition Excellent!
Repairs, Comments
Acquired 17.10.2003
Type, Precision, Input mode Logic, 8 BCD digits, no exponent, Algebraic
Programmable No
Memory One register. permanent memory
Display 8 digit 7 segment black&white LCD, separate sign
Special features A specialized version for programmers: Supports decimal, hex and octal number display (but not binary). There's one shift operation,  a 1's and 2's complement and AND, OR and XOR operations. However, these feature come nowhere close to the HP-16C.
Original Pricing, Production Introduced 1982 (50$)
Batteries 2x small button sized cells
Dimensions Length 14.8cm, Width 7.8cm, Height 2.5cm
Links See Datamath Museum.
Comment The housing is very similar to the TI-55-II. See also the HP-16C which was also introduced 1982.
The keyboard is as horrible as with all the type-II LCD calculators!
