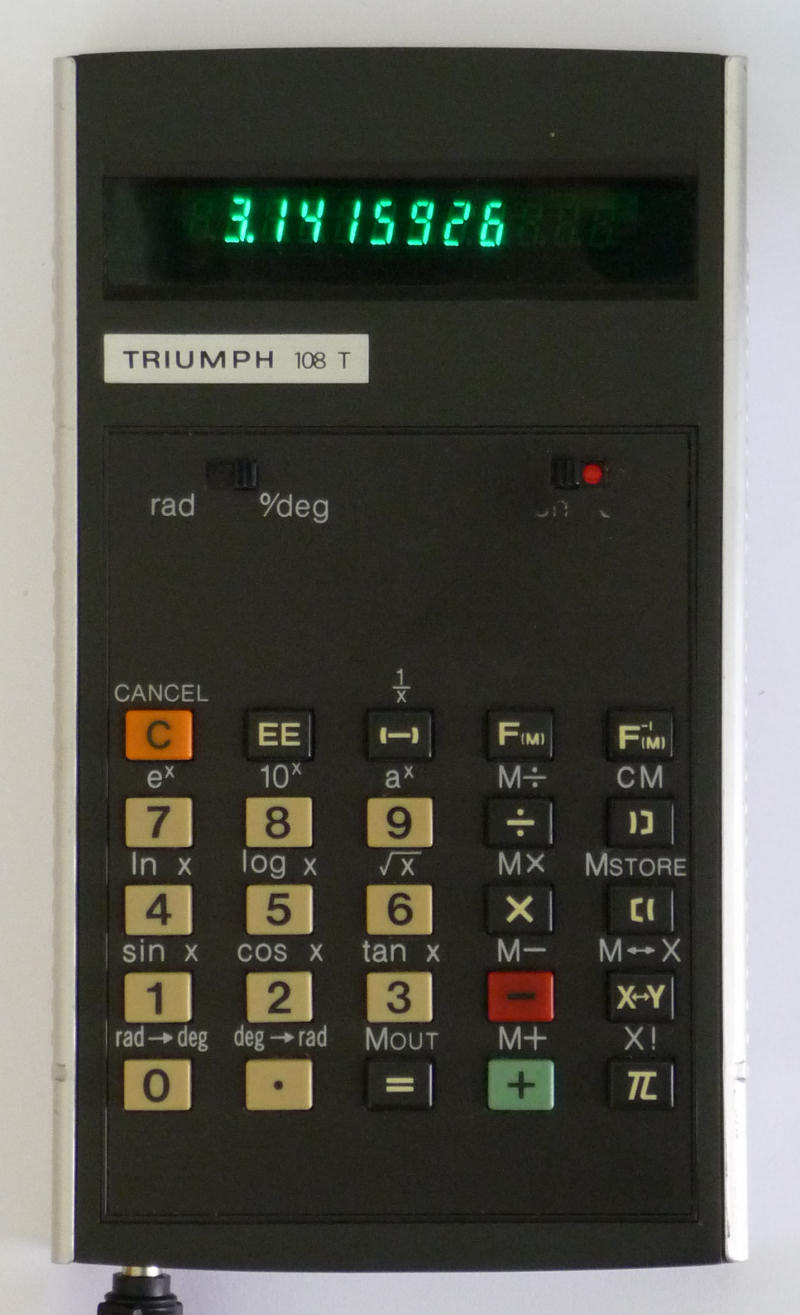

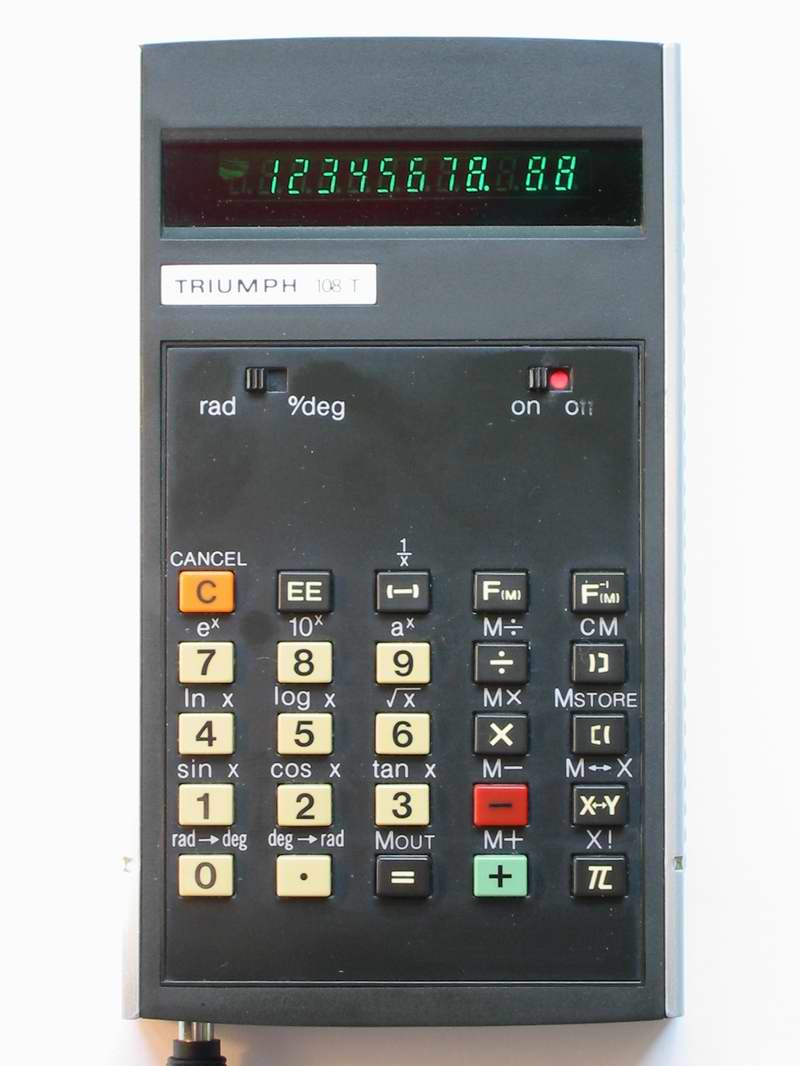

Triumph-Adler 108T, EC 28

Serial number 68.676.433, made in Japan
Accessories Pouch

Bedienungsanleitung (German), undated

Installed accu pack, still working
Condition Very good. The "off" label shows some wear and there are many scratches on the back of the unit due to normal wear.
Repairs, Comments 18.2.2003 Unsoldered the accu pack in order to avoid leakage
Acquired 8.2.2003

Serial number 68.678.691, made in Japan
Accessories Pouch

Installed NiCd accu pack, still working
Condition Good. Labels next to the on/off switch worn off, back of the unit shows many scratches.
Repairs, Comments 21.8.2009 Even though it is in very good shape I removed the NiCd battery pack to avoid corrosion.
Acquired 13.2.2009, courtesy of Steffen Finger, Germany.
Type, Precision, Input mode Scientific, 8 BCD digits, exponent ±99, Algebraic
Programmable No
Memory 1 summation register, not permanent
Display 12 digit 7 segment green LED, 2 digits for sign, 2 for exponent
Special features Register arithmetic, faculty
Original Pricing, Production TA Vertriebs GmbH, Nürnberg, Germany
Batteries 4xAA accu pack or external DC 6V power supply, minus on center. Note that the unit cannot be operated with regular batteries because it lacks the battery contacts. The accu pack is soldered to wires inside the battery compartment.
Dimensions Length 15cm, Width 8.6cm, Height 2.6cm
