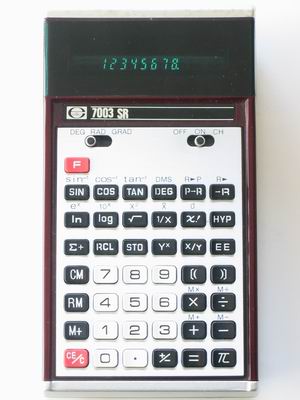

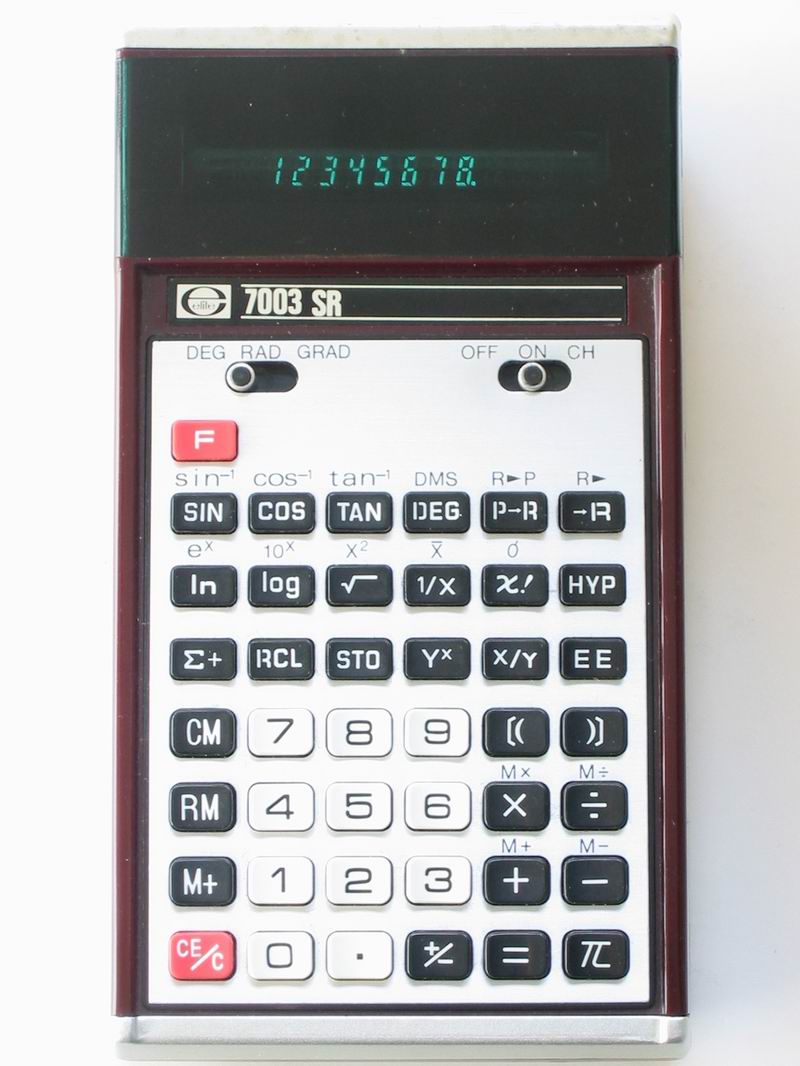

Elite 7003SR

Serial number 0000311
Accessories Pouch

Manual: Taschen-Rechner 7003SR Bedienungsanleitung (German, 39 pages). On the back the purchase data 18.11.1976 is written down.
Condition Arrived with a serious power switch contact problem. 9.2.2004: Disassembled the unit and fixed the contact problem.
Repairs, Comments
Acquired 24.1.2004
Type, Precision, Input mode Scientific, 8 BCD digits, exponent ±99, Algebraic
Programmable No
Memory 5 memories (0 - 4), register 0 is a summation register. Not permanent.
Display 12 digit 7 segment green LED
CPU M58628-001P (Mitsubishi)
Special features The lack of speed! Calculating 69! takes 6 seconds during which the displays stays dark.
Original Pricing, Production Introduced 1976
Batteries 2xAA or external 3V off-the-shelf power supply.
Dimensions Length 15.3cm, Width 8.4cm, Height 3.1cm
Comment To select scientific display format press HYP and the number of digits.
To select fixed-point display format press HYP, then the decimal point and the number of digits.
Default is fixed-point format with 4 fractional digits.
